Unit types & sizes
Match the unit to the way you actually operate
Five type families, 242 units, and a span from a compact 2,153 sq ft footprint to a 5,285 sq ft single-volume floor plate. The right choice depends less on size alone than on how you move goods and use space — here's how they compare.
Five ways to occupy
The type families, compared
The families trade off built-up area, roller-shutter height and floor configuration against one another. Read them against your own workflow rather than headline square footage.
Type A
2,691 – 2,874 sq ft
140 units · The core flexible unit — dual-floor configuration with high roller shutters.
Type B
2,422 – 2,476 sq ft
33 units · Efficient mid-size units with the same dual-floor flexibility.
Type C
2,153 sq ft
35 units · The most accessible entry — compact dual-floor units with allocated parking.
Type D
4,252 – 5,285 sq ft
18 units · The largest footprints — single-volume units for heavier operations.
Type E
3,498 – 3,713 sq ft
16 units · Single-volume units balancing scale and circulation.
Full unit mix
Every type, every size
| Type | Units | Built-up (sq ft) | Roller shutter | Upper floor | Allocated parking |
|---|---|---|---|---|---|
| A | 90 | 2,691 | 4.5 × 5.5 m | Dual-floor | — |
| A1 | 18 | 2,874 | 3.0 × 4.0 m | Dual-floor | Yes |
| A2 | 32 | 2,691 | 4.5 × 5.5 m | Dual-floor | — |
| B | 24 | 2,433 | 4.5 × 5.5 m | Dual-floor | — |
| B1 | 3 | 2,422 | 3.0 × 4.0 m | Dual-floor | Yes |
| B2 | 6 | 2,476 | 4.5 × 5.5 m | Dual-floor | — |
| C | 35 | 2,153 | 4.5 × 5.5 m | Dual-floor | Yes |
| D | 12 | 4,252 | 4.5 × 4.0 m | Single-volume | — |
| D1 | 2 | 5,285 | 3.0 × 4.0 m | Dual-floor | — |
| D2 | 4 | 4,252 | 4.5 × 4.0 m | Single-volume | — |
| E | 10 | 3,509 | 4.5 × 4.0 m | Single-volume | — |
| E1 | 2 | 3,713 | 4.5 × 4.0 m | Single-volume | — |
| E2 | 4 | 3,498 | 4.5 × 4.0 m | Single-volume | — |
| Total | 242 | ||||
VR show units
Step inside — 360° VR show units
Walk through furnished show units for Type A, C and D in full 360°. View the layout plan, then launch the virtual tour.

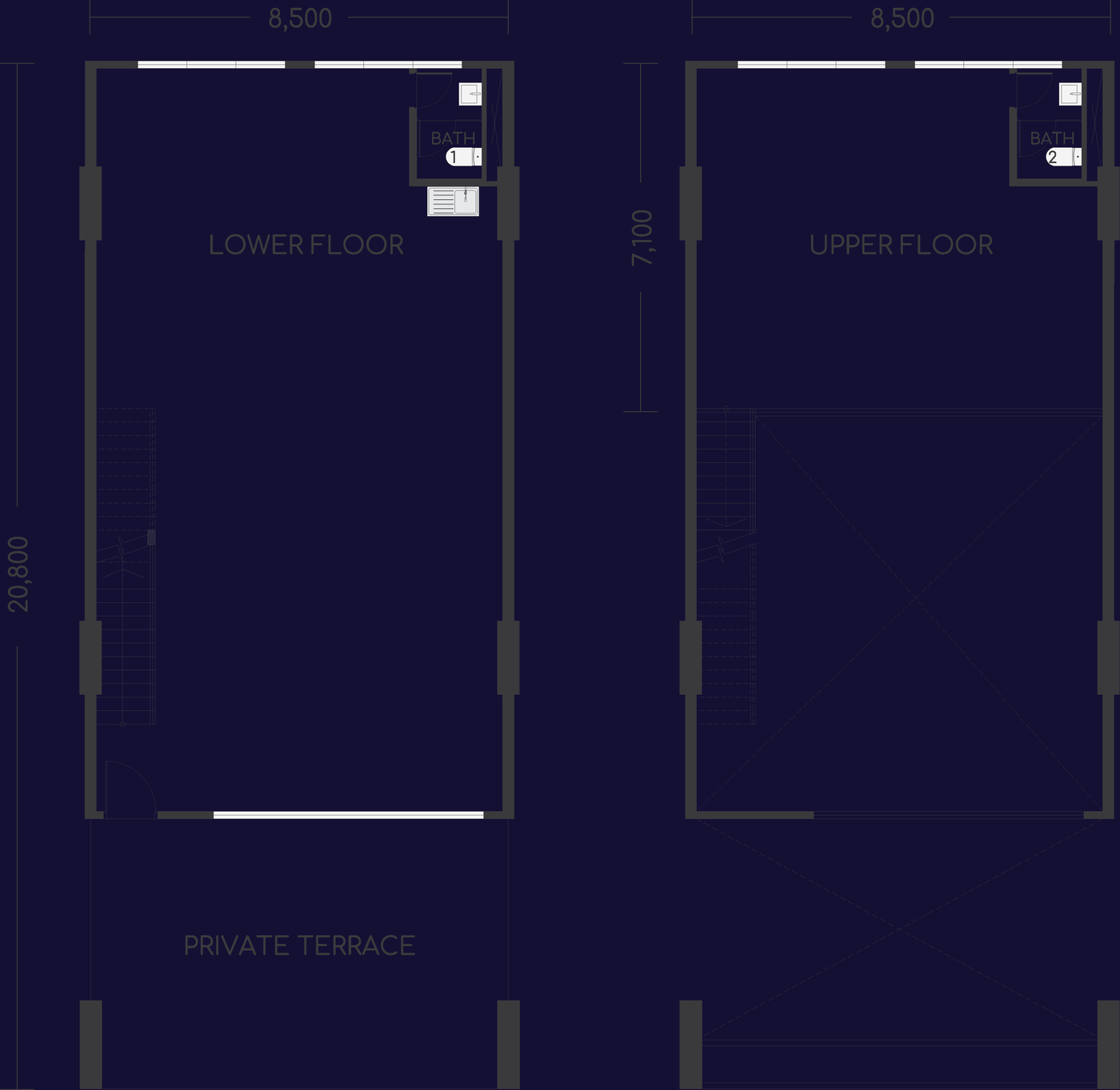

The core flexible unit — dual-floor configuration with high roller shutters.

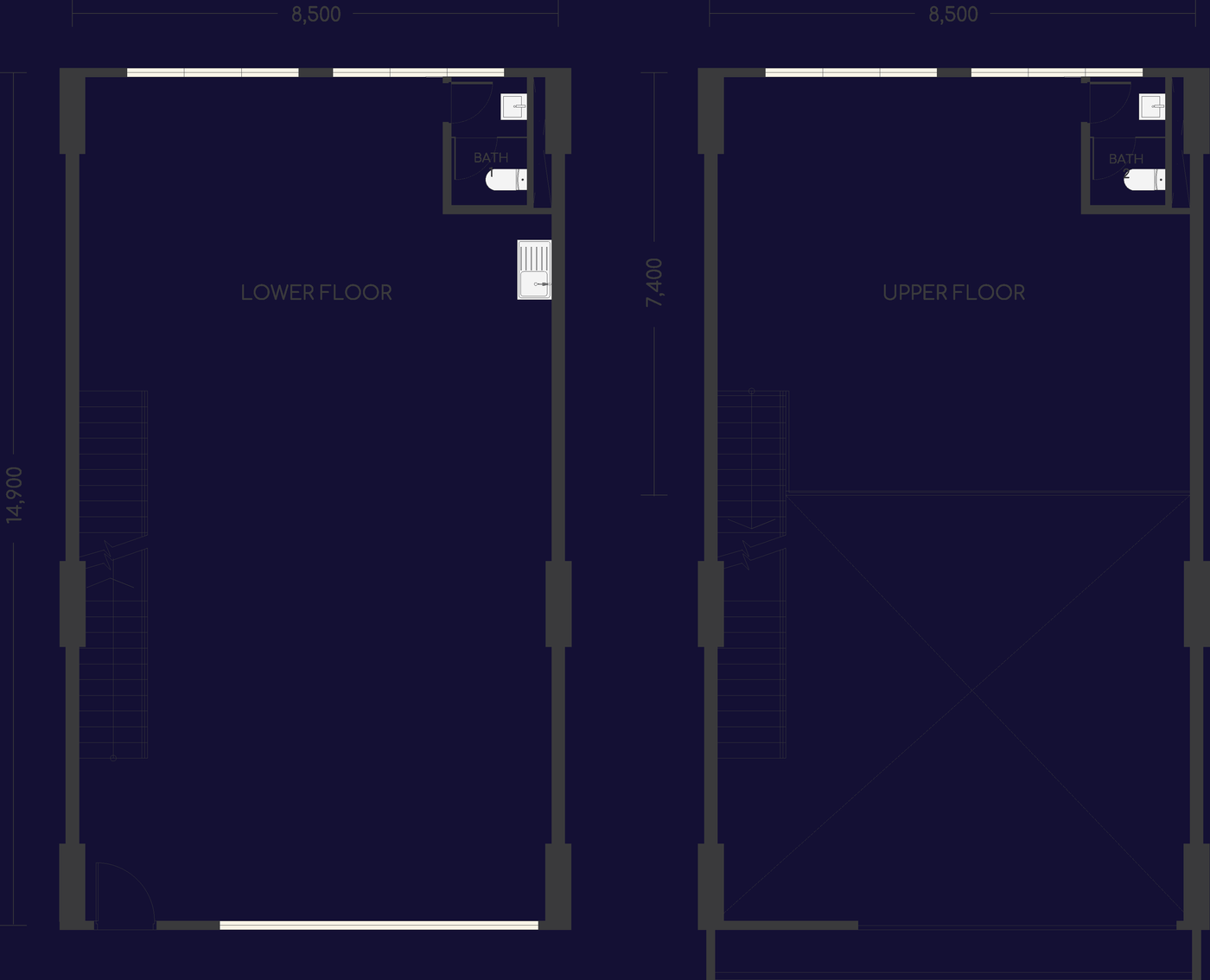

The most accessible entry — compact dual-floor units with allocated parking.

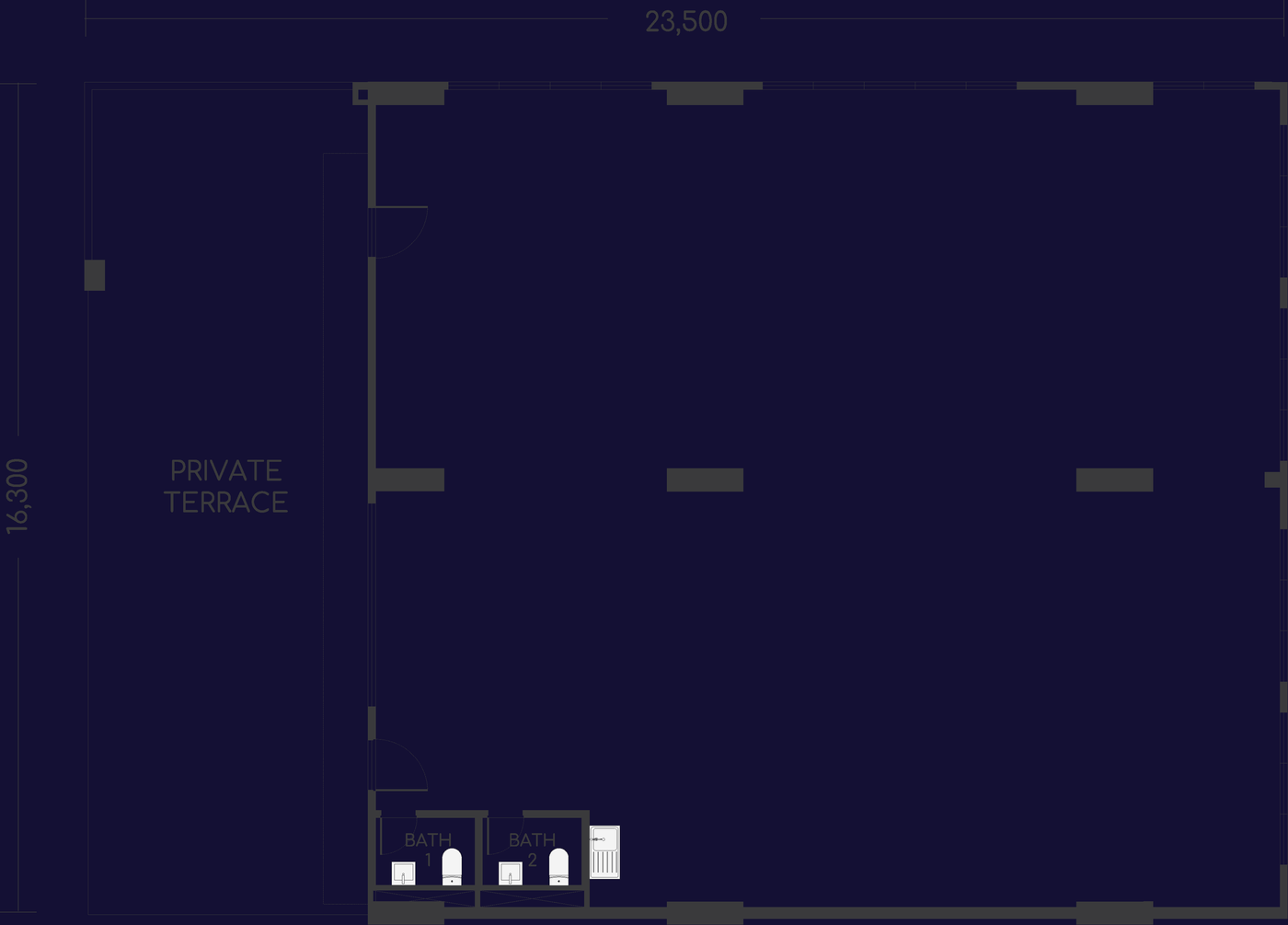

The largest footprints — single-volume units for heavier operations.
Artist's impression. Click any image to enlarge.
A short decision guide
Moving goods on pallets, or driving a vehicle into the unit? Lead with the 4.5 m roller-shutter families — Types A, A2, B, B2 and C — and aim for a ground-level bay close to the loading terrace, where turnaround is quickest.
Need one large, uninterrupted plate for a showroom, studio or assembly line instead? The single-volume Type D and E families, up to 5,285 sq ft, give you the most contiguous floor. Note too that Types A1, B1 and C come with allocated car-park bays.
Tell me your line of work and headcount, and I'll narrow it to the two or three units that genuinely fit — floor plans included.
